| Type | 0.6-300C-a |
| Specific Nominal Capacity | 0.66 ml/rev |
| Nominal capacity | 3,564 ml/h at 100 Hz |
| Speed | max. 90 rpm |
| Heating | max. 300°C; 10 barg |
| Material in Contact w/ Heating Media | 1.4404 & SS 316 |
| Material in Contact w/ Pump | 1.4112 (X90CrMoV18) |
| Material in Contact w/ Pump Adapter Plate | 1.4404 |
| Shaft Sealing | Stuffing box (PTFE) |
| Suction Side Connection | Cone Ø42 mm, angle 52°– (Rotulex 41/25) |
| Discharge Side Connection | Tri-clamp DN 15 (groove) |
| Heating Connection | G 1/8” – Swagelok 8 mm tube |
| Drive | Three-phase asynchronous geared motor |
| Motor Type | 230/400V; 3Ph; 1,350 rpm @ 50 Hz |

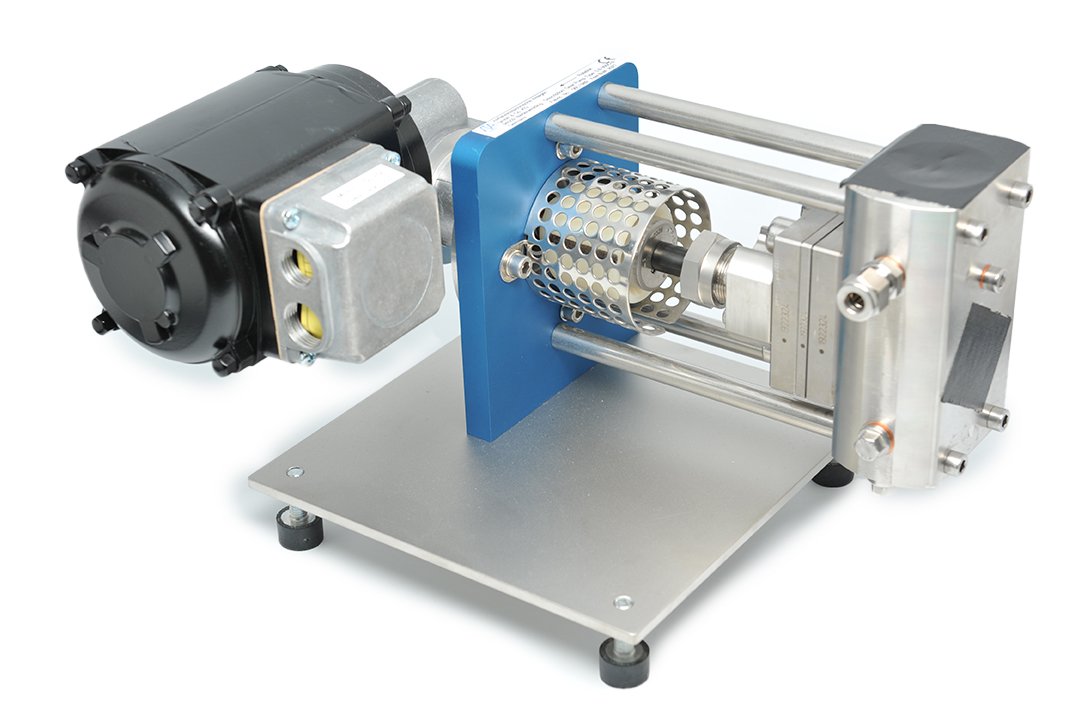

VTA Gear Pump Type 0.6 – Complete (Residue)
The gear pump is directly connected to the pump adapter plate and heated by surface contact. The product enters through the suction connection at the pump adapter plate into the gear pump.
One gear rotates clockwise and the other gear counter-clockwise. The product enters the space in between the teeth and rotates with the gears towards the discharge of the pump. The pump adapter plate can be tempered by liquid or vaporous heat carriers. The rotating drive shaft is sealed by a stuffing box containing packing rings. The throughput of the pump can be set by changing the frequency of a connected frequency inverter.
Use: Residue Side of Evaporator
Free Shipping
Free standard shipping on orders over $10,000.
7 Days Return
7 days easy replacement and return.
$11,500.00
Availability: 1 in stock (can be backordered)
| Weight | 480 oz |
|---|---|
| Dimensions | 20 × 12 × 20 in |
